PRODUCT >READING SYSTEMS> POS 2

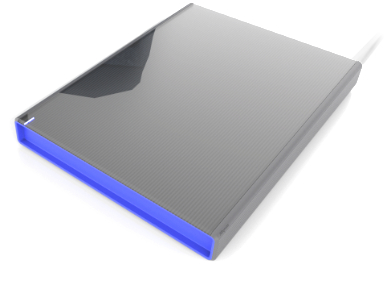

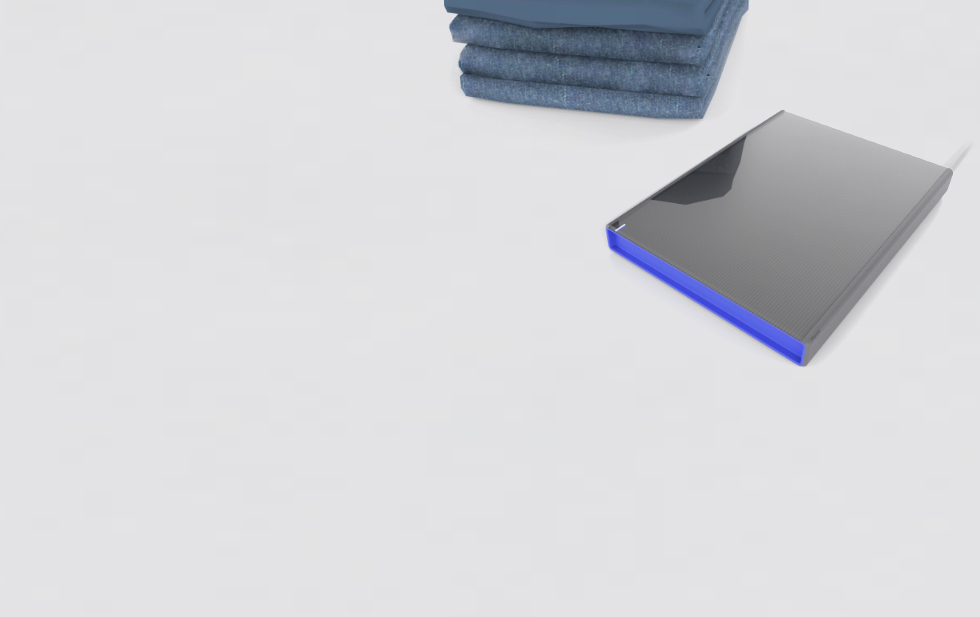

POS 2
Tabletop reading system for retail
In the retail-fashion sector, there are different spaces oriented to the sale of the product, such as traditional counters and the increasingly common self-checkout points. In Myruns we have different Point Of Sale models, which help retailers in the fashion sector to implement RFID in their stores, regardless of the characteristics of the space in which sales are made. Within this series of products, the POS 2 stands out for its ease of implementation, since it works practically as a “plug and play” peripheral.
Design and efficiency for new retail experiences new sales experiences
This system integrates two essential RFID components of the Myruns brand: The MD4U, a reading module with USB connectivity, and the ANC antenna, designed for short distance reading.
Thanks to the module’s connectivity, the Myruns POS 2 can be connected to a PC, thus facilitating commissioning.
Parameters
| Protocol | EPC Global UHF Class 1 Gen2 |
| Frequency | 860-960 MHz |
| RF output power | 5-30 dBm |
| DC voltage | 5 V supplied by USB cable |
| DC power | 6.5 W (30 dBm) |
| Operating temperature | From -20°C to 60°C |
| Polarization | Circular (RHCP) |
| Gain | 0.5 dBi |
| Impedance | 50 Ω |
| SWR (VSWR) | < 1.6:1 |
| Axial ratio | 3 dB |
| Beamwidth at half power | 97°/ 97° |
Technologies
| Myruns RFID SDK | Software development kit with the required features for RFID module manipulation and reading setup. |
| Supported programming languages | JAVA, JavaScript (Node JS) and C |
Connection
| x1 USB type C | Connection for connecting the module to a PC via USB. |
Mechanics
| Weight | 815 gr |
| Dimensions | 228 x 190 x 37 mm |
| Material |
Plastic + Glass |
